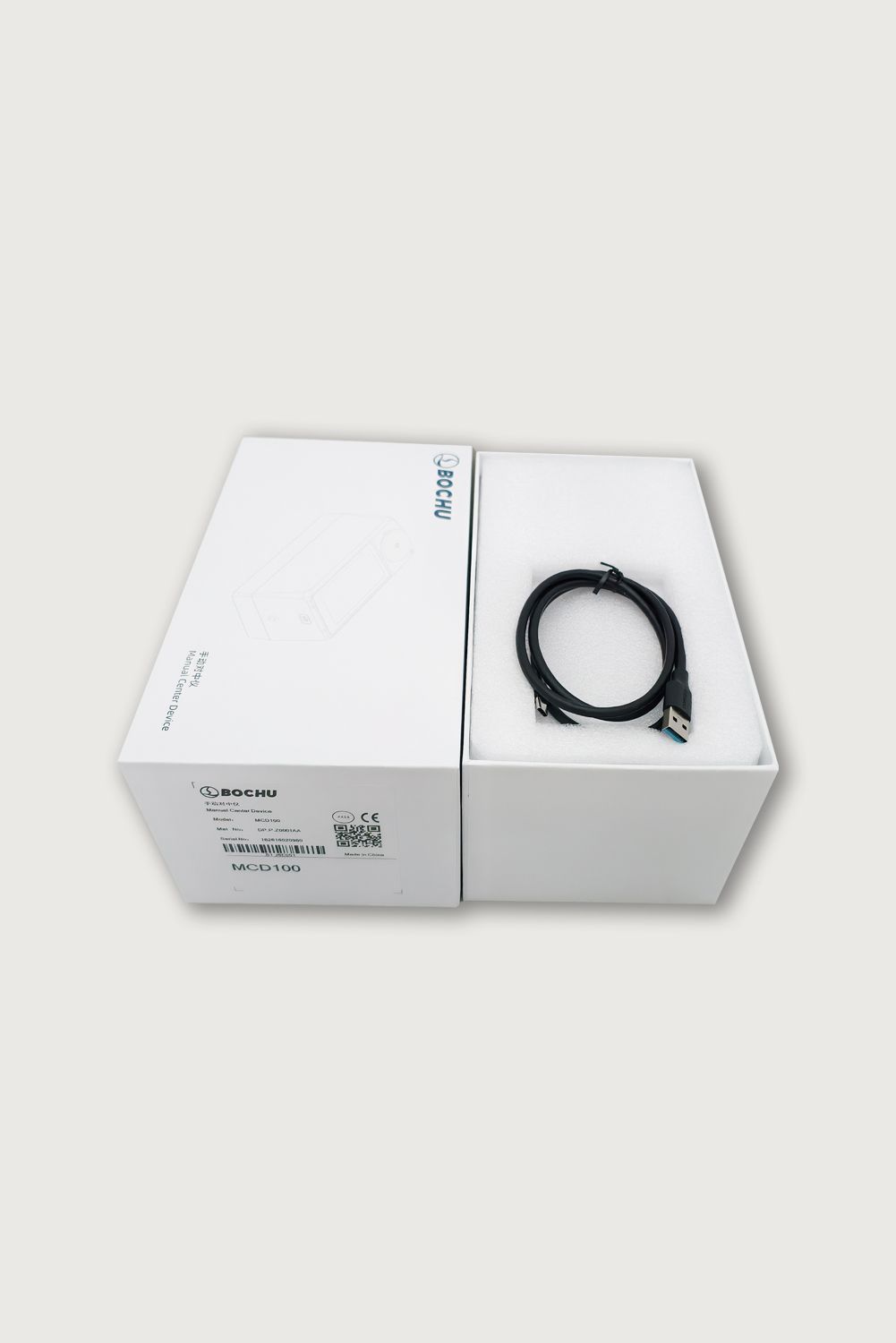

MCD100 Manual Center Device

Nozzle centering is a vital part of laser cutting that directly impacts the quality and stability of the cuts. Previously, Yibao Laser mainly used the tape method for centering. The owner commented, "An experienced operator might finish in a minute or two, but a trainee could spend over an hour just trying to find the right position." This conventional method involved repeated trial-and-error, observation, and adjustments, resulting in low efficiency and a strong dependence on the operator’s skill.

A More Visual Approach to Centering

With the introduction of the MCD100, the centering process has become much more visual. "You get real-time feedback as you make adjustments, so it’s very clear which way to correct," the owner explained. Unlike the tape method, which requires multiple tests, operators can now continuously observe the centering status, greatly reducing setup time.

Oxygen Cutting Demands Even Higher Centering Accuracy

In addition to speed, accuracy in centering is crucial. The owner highlighted that oxygen cutting requires even greater precision. "Oxygen cutting nozzles have smaller openings and need higher accuracy. Sometimes deviations are invisible to the naked eye, yet they still affect cut quality." With the MCD100, operators can watch the adjustment process in real time, ensuring more consistent and precise centering.

Results: Efficiency Doubled and Accuracy Improved

After implementing the MCD100, Yibao Laser saw significant benefits:

- Centering efficiency roughly doubled

- Centering accuracy improved to as precise as 0.02 mm

- Faster training for new staff

- More consistent and repeatable centering outcomes
